Ex Stock (2 -3 Days)
Controllers
- 1766-L32BXB MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 24V dc power
- 1766-L32BXBA MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 24V dc power
Normally in stock at supplier (7-12 Days Delivery)
Controllers
- 1766-L32BWA MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital normal 24V dc inputs, 12 relays outputs, 110/240V ac power
- 1766-L32BWAA MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital normal 24V dc inputs, 12 relays outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power
- 1766-L32AWA MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 110/240V ac power
- 1766-L32AWAA MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power
Accessories
- 1766-MM1 Memory Module for MicroLogix 1400
Software – RSLogix 500 (for More Information Click Here)
- 9324-RL0100ENM RSLogix 500 Starter Edition Programming Software for MicroLogix controller families. (CD-ROM) – 9324-RL0100ENE
- 9324-RL0300ENM RSLogix 500 Standard Edition Programming Software for SLC 500 and MicroLogix controller families. (CD-ROM) 9324-RL0300ENE

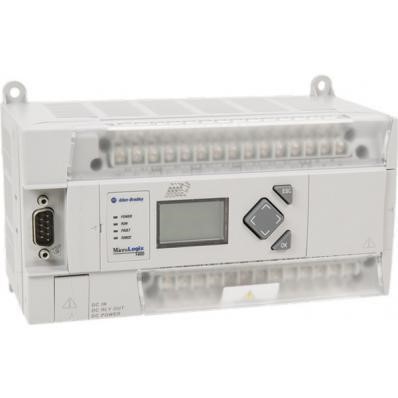

MicroLogix 1400 Programmable Logic Controller Systems
Our Bulletin 1766 MicroLogix™ 1400 Programmable Logic Controller Systems build upon critical MicroLogix 1100 features: EtherNet/IP™, on-line editing and a built-in LCD panel. These controllers feature a higher I/O count, faster high-speed counter, pulse train output, enhanced network capabilities and backlight on the LCD panel. Controllers without embedded analog I/O points provide 32 digital I/O points, while analog versions offer 32 digital I/O points and 6 analog I/O points. You can expand all versions with up to seven 1762 expansion I/O modules.
FEATURES
- Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
- Built-in LCD with backlight lets you view controller and I/O status
- Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
- Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
- As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
- Two serial ports with DF1, DH-485, Modbus RTU, DNP3 and ASCII protocol support
- 10 KB words in user program memory with 10 KB words in user data memory)
- Up to 128 KB for data logging and 64 KB for recipe
Additional Information
With Allen-Bradley® Industrial Control Components you get the right components, at the right price, right when you need them.
Our Connected Components solution provides a design toolkit, programming software, and all the right products bundled together to help you more quickly design and develop machines.
Disclaimer:
C.E Automation is not an authorised Allen Bradley Re seller.
WARRANTY:
All our parts are new genuine original units in factory sealed boxes and come with a full 12 month warranty handled by C.E Automation.
