Condition: NEW (Factory Sealed)

Choose Options from Drop-Down List Above or please send request to sales@plcgear.com.au

*For 1400 Controllers Click Here

*For 1100 Controllers Click Here

Normally In Stock (2 -3 Days)

Expansion Modules

• 1762-IQ16    1762 MicroLogix, 16 Point 24 VDC Sink/Source Input Module
• 1762-IF4    1762 MicroLogix, 4 Channel Current/Voltage Analog Input Module
• 1762-OB16    1762 MicroLogix, 16 Point 24 VDC Source Output Module
• 1762-OW16    1762 MicroLogix, 16 Point VAC/VDC Relay Output Module

Normally In stock at supplier (7-10 Days Delivery)

Expansion Modules

• 1762-IA8   1762 MicroLogix, 8 Point 120 VAC Input Module
• 1762-IF2OF2
  1762 MicroLogix, 4 Channel Analog Combo Module
• 1762-IQ32T
  1762 MicroLogix, 32 Point 24 VDC Sink/Source Input Module
• 1762-IQ8
  1762 MicroLogix, 8 Point 24 VDC Sink/Source Input Module
• 1762-IQ8OW6
  1762 MicroLogix, 8 Point 24 VDC Sink/Source Input/6 Point VAC/VDC Relay Output Combination Module
• 1762-IR4
  1762 MicroLogix, 4 Channel, RTD/Resistance Module
• 1762-IT4
  1762 MicroLogix, 4 Channel, Thermocouple/Mv Module
• 1762-OA8
  1762 MicroLogix, 8 Point 120/240 VAC Output Module
• 1762-OB32T
  1762 MicroLogix, 32 Point 24 VDC Source Output Module
• 1762-OB8
  1762 MicroLogix, 8 Point 24 VDC Source Output Module
• 1762-OF4
  1762 MicroLogix, 4 Channel Analog Output Module
• 1762-OV32T
  1762 MicroLogix, 32 Point 24 VDC Sink Output Module
• 1762-OW8    1762 MicroLogix, 8 Point VAC/VDC Relay Output Module

Please Email sales@plcgear.com.au for Availability as not always in stock

• 1762-OX6I    1762 MicroLogix, 6 Point 24 VDC Isolated High Current Relay Output Module

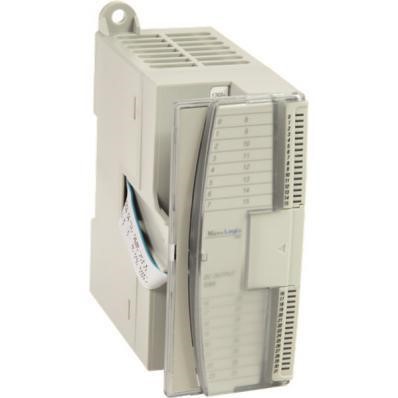

MicroLogix Expansion I/O

Our Bulletin 1762 MicroLogix™ Expansion I/O modules extend the capabilities of the MicroLogix 1100, 1200, and 1400 controllers by maximizing flexibility of the I/O count and type. The modular, rackless design enhances cost savings and reduces replacement parts inventory. Modules can be either DIN rail or panel mounted.

Features

• Feature-rich functionality addresses a wide range of applications
• Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
• Software keying prevents incorrect positioning within the system
• Finger-safe terminal blocks for I/O wiring
• Small footprint reduces panel space
• Integrated high-performance I/O bus
• Label to record I/O terminal designations
• Digital, analog, and specialty I/O modules available

1762 MicroLogix™ Digital Expansion I/O Modules

• 8, 16, or 32 inputs or outputs
• AC and DC voltages
• Combination module with 8 inputs and 6 contact outputs
• AC/DC relay output modules

1762 MicroLogix Analog Expansion I/O Modules

• Input module with 4 differential inputs
• Output module with 4 single-ended outputs
• Combination module with 2 differential inputs and 2 single-ended outputs

1762 MicroLogix Specialty Expansion I/O Modules

• RTD module with 4 input channels
• Thermocouple module with 4 input channels plus a CJC sensor

Maximum Number of Expansion I/O Modules per Controller

Disclaimer:

C.E Automation is not an authorised Allen Bradley Re seller.

WARRANTY:

All our parts are new genuine original units in factory sealed boxes and come with a full 12 month warranty handled by C.E Automation.
