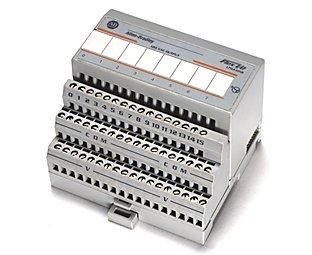

FLEX I/O MODULES

Our Bulletin 1794 FLEX™ I/O modules offer flexibility for your application with digital, analog, HART analog, and specialty I/O, with 4…32 points per module. You can mix and match digital and analog I/O with mounting and wiring options.

Digital Inputs

• 1794-IB8    Flex I/O, Input Module, 24VDC, 8 Sink Inputs
• 1794-IB16    Flex I/O, Input Module, 24VDC, 16 Sink Inputs
• 1794-IB16D    Flex I/O, Input Module, 24VDC, 16 Sink Inputs, Diagnostic
• 1794-IB32    Flex I/O, Input Module, 24VDC, 32 Sink Inputs

Digital Outputs

• 1794-OB8    Flex I/O, Output Module, 24V DC, 8  Source Outputs
• 1794-OB8EP    Flex I/O, Output Module, 24V DC, 8 , Electronically Protected
• 1794-OB16    Flex I/O, Output Module, 24V DC, 16  Source
• 1794-OB16D    Flex I/O, Output Module, 24V DC, 16  Source, Diagnostic
• 1794-OB16P    Flex I/O, Output Module, 24V DC, 16  Source, Protected
• 1794-OB32    Flex I/O, Output Module, 24V DC, 32  Source
• 1794-OB32P    Flex I/O, Output Module, 24V DC, 32  Source (2 of 16)
• 1794-OW8    Flex I/O, Relay Contact Output Module, 8 Point Isolated

Digital Combination

• 1794-IB10XOB6    Flex I/O, Combination, 24VDC, 10 In Sink/6 Out Source
• 1794-IB16XOB16P Flex I/O, Combination, 24VDC, 16 In Sink/16 Out Source

Analog Inputs

• 1794-IE8    Flex I/O, Analog Input Modules, 8 Single-Ended Inputs
• 1794-IE12    Flex I/O, Analog Input Modules, 12 Single-Ended Inputs
• 1794-IE4XOE2    Flex I/O, Analog Combo, 4 Inputs / 2 Single-Ended Outputs
• 1794-IE8XOE4    Flex I/O, Analog Combo, 8 Inputs / 4 Single-Ended Outputs
• 1794-IF2XOF2I    Flex I/O, Analog Combination Module, 2 Inputs / 2 Isolated
• 1794-IF4I    Flex I/O, Analog Input Module, 16 Bit, 4 Point Isolated

Analog Outputs

• 1794-OE4    Flex I/O, Analog Output Modules, 4 Single-Ended Outputs
• 1794-OE12    Flex I/O, Analog Output Modules, 12 Single-Ended Outputs
• 1794-OF4I    Flex I/O, Analog Output Module, 16 Bit, 4 Point Isolated

Encoder, HighSpeed, RTD, Counters

• 1794-ID2    Flex I/O, Input Module, 2-Channel Incremental Encoder
• 1794-VHSC    Flex I/O, 2-Channel 1 Mhz Very High Speed Counter
• 1794-IP4    Flex I/O, Input Module, 4-Channel 12/24VDC Pulse Counter
• 1794-IR8    Flex I/O, Input Module, 8 Point RTD
• 1794-IRT8    Flex I/O, Input Module, Non-Isolated, Thermocouple / RTD / Mv
• 1794-IT8    Flex I/O, Input Module, Thermocouple, 8 Point

Bases

• 1794-TB3 FLEX I/O TERMINAL BASE 3 WIRE CAGE CLAMP
• 1794-TB32 FLEX I/O TERMINAL BASE FOR 32 POINT

FEATURES

• Digital and analog modules plus a breadth of specialty modules support a wide variety of applications
• Removal and Insertion Under Power (RIUP) lets you replace modules and make cable connections while the system is in operation
• FLEX I/O-XT™ extreme environment modules are rated for -20…70 °C (-4…185 °F) and are compatible with the ControlLogix-XT™ extreme environment system
• Conformal coated modules are available
• Each I/O module requires a terminal base for connection points for I/O wiring

1794 FLEX™ I/O Digital Modules

• Cover a wide electrical range
• Densities range from 8…32 points
• Isolated inputs or outputs, protected outputs, electronic fusing, or diagnostics available on some modules

1794 FLEX I/O Analog Modules

• Individually configurable channels
• Selectable input filters on many modules
• Single-ended or differential inputs
• On-board scaling
• Internal calibration
• Thermocouple, RTD, and HART (Highway Addressable Remote Transmitter) modules available

1794 FLEX I/O Specialty Modules

• Frequency modules
• Very High Speed counter module
• Pulse counter modules
