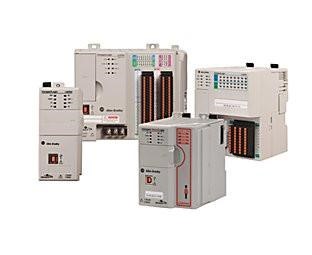

1769 CompactLogix
Our Bulletin 1769 CompactLogix™ L3x controllers are ideal for small to mid-size control applications that don’t require motion or safety functionality. These controllers offer integrated serial, EtherNet/IP™, or ControlNet™ channels; and modular DeviceNet™ communications. Rockwell Automation announces that as of June 2016, the Bulletin 1769 CompactLogix™ L23x Controllers will be discontinued and no longer available for sale. Customers are encouraged to migrate to the Bulletin 1769 CompactLogix 5370 Controllers.
Condition: NEW (Factory Sealed)
In stock at supplier (7-10 Days Delivery)
Choose Options from Drop-Down List Above or please send request to sales@plcgear.com.au
Communications |
|
| 1769-ADN | DeviceNet Adapter |
| 1769-ARM | Address Reserve Module |
| 1769-SDN | DeviceNet Scanner |
Special |
|
| 1769-ASCII | 2 Channel RS232/RS485/RS422 ASCII Module |
| 1769-BOOLEAN | 24VDC Input/Output Boolean Control Module |
| 1769-HSC | 2/4 Channel High Speed Counter/Encoder Module |
Batteries |
|
| 1769-BA | Replacement Battery |
Digital Inputs |
|
| 1769-IA16 | 16 Point 120 VAC Input Module |
| 1769-IA8I | 8 Point 120 VAC Individually Isolated Input Module |
| 1769-IG16 | 16 Point 5 VDC TTL Input Module |
| 1769-IM12 | 12 Point 240 VAC Input Module |
| 1769-IQ16 | 16 Point 24 VDC Sinking/Sourcing Input Module |
| 1769-IQ16F | 16 Point High Speed 24VDC Input Module |
| 1769-IQ32 | 32 Point 24VDC Input Module |
| 1769-IQ32T | 32 Point 24VDC Input Module – Single Wide |
| 1769-IQ6XOW4 | Combo 6Pt 24 VDC Snk/Src In, 4Pt VAC/VDC Relay Out |
Analog Inputs |
|
| 1769-IF16C | 16 Channel Compact High- density Analog Current Input Module |
| 1769-IF16V | 16 Channel Compact High- density Analog Voltage Input Module |
| 1769-IF4 | 4 Channel Analog Current/Voltage Input Module |
| 1769-IF4FXOF2F | High Resolution, High Speed 4 In/2 Out Analog Combination Module |
| 1769-IF4I | 4 Channel Analog Current/Voltage Isolated Input Module |
| 1769-IF4XOF2 | 8 Bit Resolution, High Speed 4 In/2 Out Anlg. Comb |
| 1769-IF8 | 8 Channel Analog Current/Voltage Input Module |
| 1769-IR6 | 6 Channel RTD/Resistance Input Module |
| 1769-IT6 | 6 Channel Thermocouple/Mv Input Module |
Digital Outputs |
|
| 1769-OA16 | 16 Point 120/240 VAC Output Module |
| 1769-OA8 | 8 Point 120/240 VAC Output Module |
| 1769-OB16 | 16 Point 24 VDC Sourcing Output Module |
| 1769-OB16P | 16 Point 24 VDC Electronically Fused Sourcing Output Module |
| 1769-OB32 | 32 Point 24VDC Output Module |
| 1769-OB32T | 32 Point Terminated 24VDC Output Module |
| 1769-OB8 | 8 Point High Power 24VDC Output Module |
| 1769-OG16 | 16 Point 5 VDC TTL Output Module |
| 1769-OV16 | 16 Point 24 VDC Sinking Output Module |
| 1769-OV32T | 32 Point Terminated 24VDC Sinking Output Module |
| 1769-OW16 | 16 Point VAC/VDC Relay Output Module |
| 1769-OW8 | 8 Point VAC/VDC Relay Output Module |
| 1769-OW8I | 8 Point VAC/VDC Indiv. Isolated Relay Output Module |
Analog Outputs |
|
| 1769-OF2 | 2 Channel Analog Current/Voltage Output Module |
| 1769-OF4 | 4 Channel Analog Current/Voltage Output Module |
| 1769-OF4CI | 4 Channel Analog Current Isolated Output Module |
| 1769-OF4VI | 4 Channel Analog Voltage Isolated Output Module |
| 1769-OF8C | 8 Channel Analog Current Output Module |
| 1769-OF8V | 8 Channel Analog Voltage Output Module |
Power Supplies |
|
| 1769-PA2 | Power Supply 120/240 VAC Input 2 Amp @ 5 VDC Output |
| 1769-PA4 | Power Supply 120/240 VAC Input 4A @ 5VDC, 2A @ 24VDC |
| 1769-PB2 | Power Supply 24 VDC Input 2 Amp @ 5 VDC Output |
| 1769-PB4 | Power Supply 24VDC Input 4A @ 5VDC 2A @ 24VDC |
Features
Specifications
| Title | Number | Download |
|---|---|---|
| CompactLogix Controllers Technical Data | 1769-TD005 | EN |
Documentation
| Title | Number | Download |
|---|---|---|
| CompactLogix Selection Guide | 1769-SG001 | CS| DE| EN| ES| FR| IT| JA| KO| NL| PL| PT| TR| ZC |
| CompactLogix Controllers Technical Data | 1769-TD005 | EN |
| 1769-L3x CompactLogix Controllers User Manual | 1769-UM011 | EN |
| Logix5000 Controllers Common Procedures Programming Manual | 1756-PM001 | EN |
| Logix5000 Controllers Design Considerations Reference Manual | 1756-RM094 | EN |
Additional Information
Migration Solutions
Demanding market conditions pose significant challenges. Across the enterprise and throughout the lifecycle, you must continuously strive for ways to leverage your existing automation investment.
Let Rockwell Automation help you determine your migration options and show you the benefits, including better performance, more informed business decisions, reduced maintenance costs, and quicker response to changing market demands.
Use the Product Lifecycle Status search tool to find specific lifecycle information by catalog number.
