POINT I/O Modules
Our Bulletin 1734 POINT I/O™ modules offer digital, analog, and specialty I/O, as well as POINT Guard safety-rated I/O, with one to eight points per module. You can mix standard and safety I/O in the same system. Comprehensive diagnostics and configurable features make POINT I/O easy to apply.
Catalog Number Description
1734-232ASC Point I/O RS232 ASCII Interface
1734-485ASC RS485/422 ASCII Interface
1734-ACNR 24V Dc Controlnet Adapter
1734-PDN Devicenet Interface Module
1734-ADN 24V Dc Devicenet Adapter
1734-ADNX 24V Dc Devicenet Adapter With Subnet Expansion

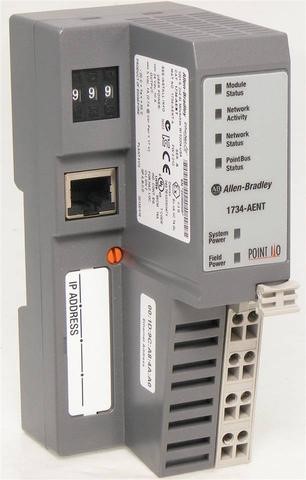

1734-AENT 1-Port EtherNet I/O Adapter Module
1734-AENTR 2-Port EtherNet I/O Adapter Module
1734-APB Point Profibus W/24Vdc Ps
1734-ARM Address Reserve Module
1734-EP24DC 24V DC Power/Bus Extension Module
1734-EPAC 120V AC Power/Bus Extension Module
1734-FPD Field Potential Distributor
1734-IA2 120 Vac 2 Channel Input Module
1734-IA4 120 Vac 4 Channel Input Module
1734-IB2 24V Dc 2 Channel Sink Input Module
1734-IB4 24V Dc 4 Channel Sink Input Module
1734-IB4D 24V Dc 4 Channel Sink Diagnostics Input Module
1734-IB8 24V Dc 8 Channel Sink Input Module
1734-IV4 24V Dc 4 Channel Source Input Module
1734-IV8 24V Dc 8 Channel Source Input Module
1734-IE2C 24V Dc 2 Channel Analog Current Input Module
1734-IE2V 24V Dc 2 Channel Analog Voltage Input Module
1734-IE4C 24V Dc 4 Channel High Density Analog Current Input Module
1734-IE8C 24V Dc 8 Channel High Density Analog Current Input Module
1734-IJ 5 Vdc Incremental Encoder Module
1734-IK 24 Vdc Incremental Encoder Module
1734-IR2 24V Dc 2 Channel RTD Input Module
1734-IR2E 24V Dc 2 Channel RTD Input Module
1734-IT2I 24V Dc 2 Channel Thermocouple Input Module
1734-OA2 120/230 Vac 2 Channel Output Module
1734-OA4 120/230 Vac 4 Channel Output Module
1734-OB2 24V Dc 2 Channel Source Output Module
1734-OB2EP 24V Dc 2 Amp 2 Channel Source Output Module, Electronically Protected
1734-OB4 24V Dc 4 Channel Source Output Module
1734-OB4E 24V Dc 4 Channel Source Output Module, Electronically Protected
1734-OB8 24V Dc8 Channel Source Output Module
1734-OB8E 24V Dc8 Channel Source Output Module, Electronically Protected
1734-OE2C 24V Dc 2 Channel Analog Current Output Module
1734-OE2V 24V Dc 2 Channel Analog Voltage Output Module
1734-OE4C 24V Dc 4 Points Analog Current Output Module
1734-OV4E 24V Dc 4 Channel Sink Output Module, Electronically Protected
1734-OV8E 24V Dc 8 Channel Sink Output Module, Electronically Protected
1734-OW2 24 Vdc Coil N.O. Dpst Relay Module
1734-OW4 24V Dc Coil N.O. Dpst 4 Relay Module
1734-OX2 24V Dc Coil N.O./N.C. Dpst Relay Module
1734-RTB Replacement IEC Screw Terminal Block
1734-RTB3 Replacement 12 Position IP20 Screw Terminal Block
1734-RTB3S Replacement 12 Position IP20 Spring Terminal Block
1734-RTBCJC Repl Screw Term Blk CJC Repl Screw Term Blk CJC
1734-RTBS Replacement IEC Spring Terminal Block
1734-SSI SSI Absolute Encoder Interface
1734-TB Module Bases W/ Removable IEC Screw Terminals (Qty 10)
1734-TB3 12-Position IP20 Screw Terminal Bases (Qty 10)
1734-TB3S 12-Position IP20 Spring Ternimal Bases (Qty 10)
1734-TBCJC Screw Terminal Base CJC Spring Terminal Base CJC
1734-TBS Module Bases W/ Removable IEC Spring Terminals
1734-TOP POINT I/O One-piece Terminal Base with Screw Clamp, 8 Terminations
1734-TOP3 POINT I/O One-piece Terminal Base with Screw Clamp, 12 Terminations
1734-TOP3S POINT I/O One-piece Terminal Base with Spring Clamp, 12 Terminations
1734-TOPS POINT I/O One-piece Terminal Base with Spring Clamp, 8 Terminations
1734-VHSC24 24 Vdc Very High Speed Counter With Source Outputs
1734-VHSC5 5 Vdc Very High Speed Counter With Source Outputs
1734-VTM Voltage Terminal Module. Single-slot 12 mm wide Voltage Terminal Modules
1734-4IOL POINT 4 Channel IO-Link Master Module
1734-CTM Common Terminal
1734-MB Mounting Base
1734-OB8S Safety Output Module
1734-IB8S Safety Input Module
FEATURES
- Modular design lets you independently select the I/O, termination style, and network interface
- Modules slide together for easy install and uninstall for easier maintenance
- Removable wiring system saves time and money during installation and troubleshooting
- Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
- Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
- Mount horizontally or vertically, with no de-rating required
- Auto Device Replacement (ADR) reduces downtime
- Add-On-Profiles in the Studio 5000™ Logix Designer application provide smooth integration into Integrated Architecture systems
1734 POINT I/O Digital Modules
- Input, output, and relay output modules
- Wide variety of voltages
- Point-level output fault states for short-circuit and wire-off diagnostics
- Field-side diagnostics on select modules
- Choice of direct-connect or rack-optimized communications
- POINT Guard I/O™ modules for safety applications
- Configurable modules
- Each point can be configured as a DC input or output
- Available with DeviceLogix™ technology
1734 POINT I/O Analog Modules
- Up to eight single-ended inputs or outputs per module
- Thermocouple and RTD modules available
- Individually configurable channels
- On-board scaling
- Selectable input filters
- Over- and under-range detection
1734 POINT I/O Specialty Modules
- Counter and encoder modules
- Synchronous Serial Interface Absolute Encoder module
- Serial interface modules (RS-232, RS-485/RS-422)
- Address Reserve (ARM) module
- Supports connection to IO-Link enabled devices with the IO-Link master module
ADDITIONAL INFORMATION
- Our DeviceLogix Smart Component Technology integrates logic-solving capability into I/O, motor starters, push buttons, and other control components, delivering higher-performance and lower-cost distributed control.
- Protect your people, productivity and environment with integrated Safety Solutions from Rockwell Automation. We understand your factory floor challenges and can help you meet your goals, using one of the broadest safety portfolios in the industry.
- Rockwell Automation Integrated Architecture Solutions provide the foundation to drive plantwide optimization efficiently and effectively, enabling you to respond competitively to the economy and changes in consumer demand.
- The Rockwell Automation® PartnerNetwork™ offers complementary product solutions for 1734 Point I/O modules through the Encompass Product Reference program.
- Sensors on IO-Link Can Enable the Connected Enterprise — Find out how smart sensors with IO-Link can enable smart machines for The Connected Enterprise.
- IO-Link Technology allows sensors connected to an IO-Link master module to provide detailed diagnostics and machine health status to improve uptime and increase productivity.
